Project Photo

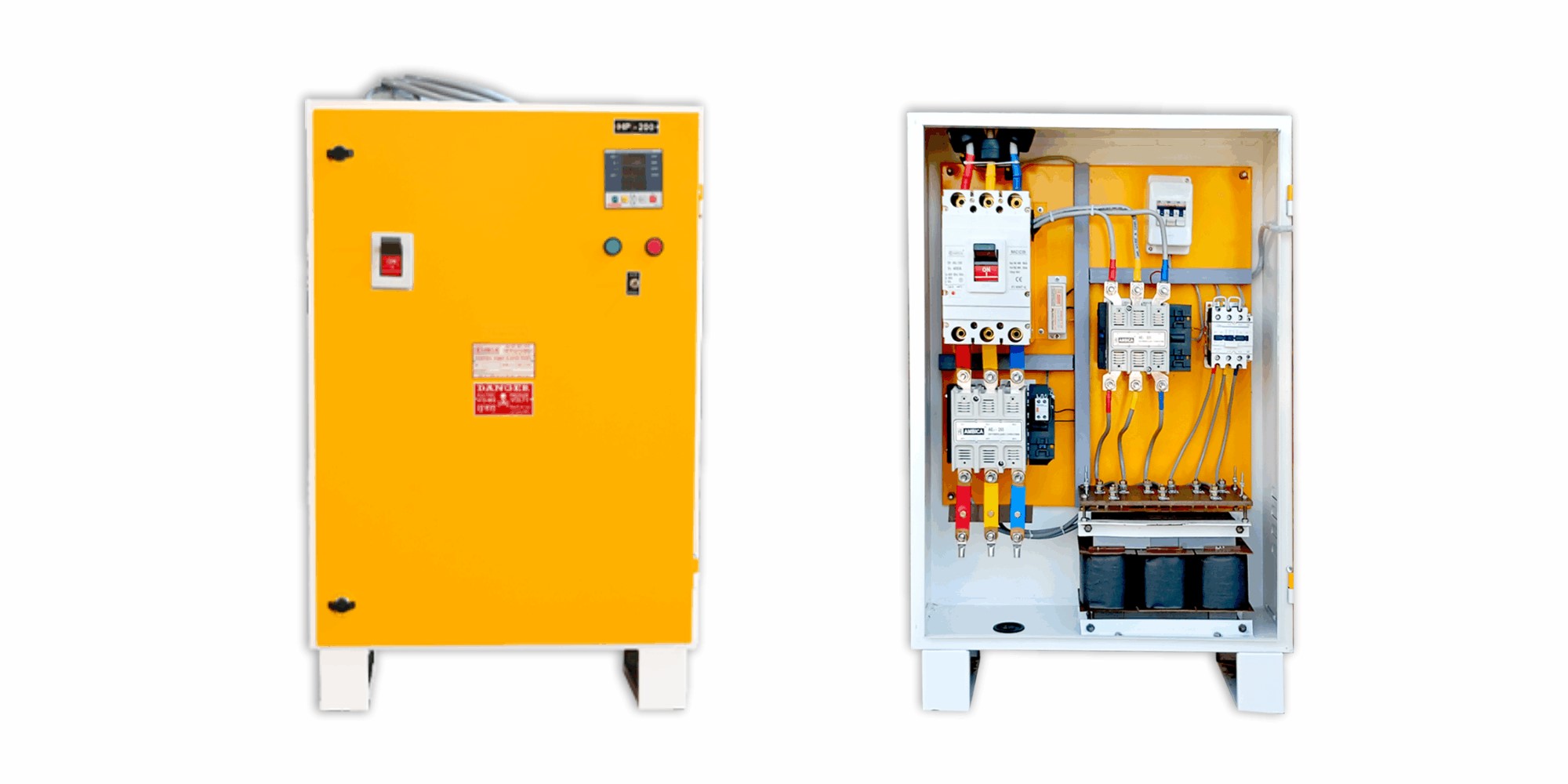

Smart Digital ATS Star Delta Mccb Panel AEC-506-ATS

Three Phase 415 V 50Hz AC

Product description



Reference

Maximum Submersible Pump Rating at 3Ø,415v

Relay Range Amp

MCCB

Rating (A)



Contactor Type

Std Pkg (Nos)

Mrp Per unit

HP

KW

AEC506ATS40

40 hp

30





1 a to 200 a Mpd-A2

125

Ae2-9511-6511

1

45016

AEC506ATS80

60 hp

45

125

Ae2-115-9511

1

55640

AEC506ATS80

80 HP

60

160

Ae2-150-9511

1

56355

AEC506ATS100

100 HP

75

250

Ae2-185-115

1

65095

AEC506ATS150

150 HP

112

400

Ae2-225-150

1

71338

AEC506ATS200

200 HP

150

400

Ae2-265-225

1

78738

AEC506ATS250

250 HP

185

1 a to 300 a Mpd-A2

400

Ae2-330-225

1

84287

AEC506ATS300

300 HP

225

400

Ae2-400-225

1

88589

Features

  • Voltage: Three Phase 280 V to 415 V AC 50 Hz.
  • Ae2 type Heavy duty contactor(rated up to 300 hp).
  • Heavy MCCB & Copper Busbar power connection.
  • R,Y,B Ampere Meter and R, Y, B Volt Meter.
  • High Voltage Protection.
  • Low Voltage Protection.
  • Short Circuit Protection.
  • Overload Protection.
  • AC Contactor operated Fast Switching.
  • Inbuilt Current Unbalance Protection.
  • Inbuilt Phase Unbalance Protection.
  • Phase Failure Protection.
  • Reverse Phase Protection.
  • Low Power Consumption & High Load Capacity.
  • Adjustable overload from 1 to 300 A.
  • Built-In Adjustable Dry-Run Protection.
  • Adjustable Voltage Range Soft Start/Stop Buttons.
  • One Time Relay Bypass Feature.
  • Adjustable Auto Switch Timer.
  • Automatic/Manual Operating.
  • Noise & Vibration Free Operating.
  • Adjustable Delay Time for OL-Dry Run.
  • Adjustable Start Delay Time, ON/OFF SPP Function.
  • Low Maintenance on Mechanical Equipment.
  • Long life and positive circuit interruption.
  • Simple Construction and Wiring.
  • WLC Function Available Optional.
  • ATS semi copper Transformer.
  • Metal enclosure protects against dust, humidity, and insects.

Application

  • Submersible Pumps,
  • Bore well Pump,
  • nduction motor.
