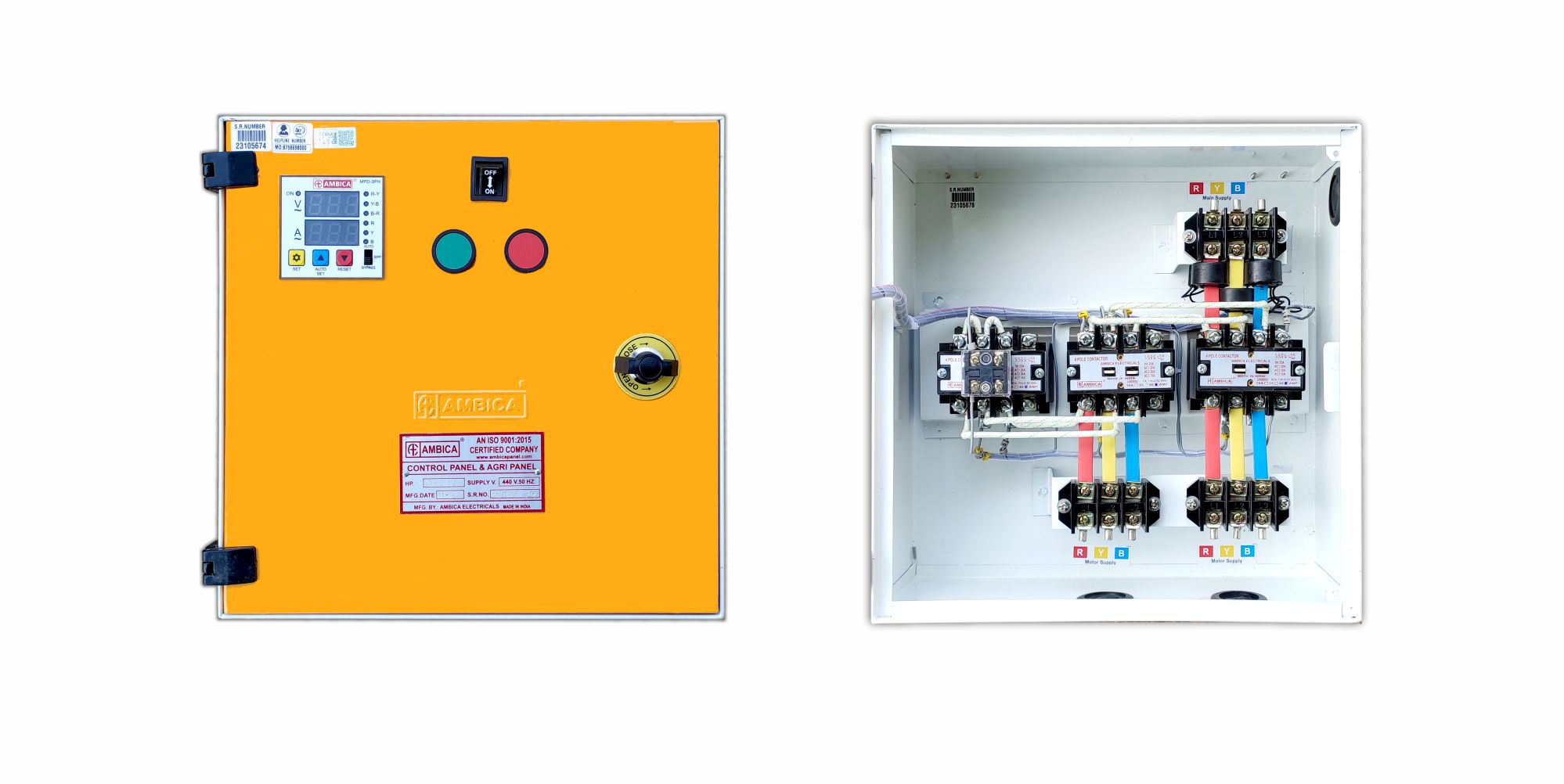

Smart Digital Star delta Panel AEC-501-WSD

Order on WhatsApp

Three Phase 415 V 50Hz AC

Product description

Reference	Maximum Submersible Pump Rating at 3Ø,415v		Relay Range Amp	Contactor Type	Std Pkg (Nos)	Mrp Per unit
	HP	KW
AEC501WSD15	15 hp	11	1 a to 35 a Mpd-A3	ACH-40 A	1	11176
AEC501WSD25	25 hp	19	1 a to 40 a Mpd-A3	AMU-2	1	12175
AEC501WSD30	30 hp	23	1 a to 55 a Mpd-A3	AMU-3	1	13782
AEC501WSD40	40 hp	30	1 a to 80 a Mpd-A3	Ae2-4011	1	16567



Features

• Voltage: Three Phase 280 V To 415 V Ac 50 Hz.
• Ach Type Contactor (rated Up To 40 Hp).
• Copper Busbar Power Connection.
• High Voltage & Low Voltage Protection.
• Reverse Phase Protection.
• Overload Protection.
• Adjustable Overload From 1 To 80 A.
• Adjustable Dry Run Current From 2 To 75 Α.
• Adjustable Voltage Limit.
• Start And Stop Buttons Provided.
• Cyclic Timer Provided With Bypass Facility.
• Delay Timer Provided With Bypass Facility.
• Adjustable Start Delay Time
• Bakelite terminal block for easy wiring.
• On Delay Timer And Off Delay Time Provided.
• Auto Switch Provided With Bypass Facility (automatically
• Starts The Unit When Power Is Restored).
• Auto Switch Timer Provided (starts The Unit With A Preset
• Time After Power Is Restored; Timer Adjustable).
• High Accuracy In Overload And Dry Run Current.
• Auto, spp Mode Available.
• User Can Bypass All The Protection From Settings.
• Error Messages Shown On Display.
• Reset Button Provided To Reset The Unit.
• Metal Enclosure Protects Against Dust, Humidity, And Insects.

Application

• Submersible Pumps,
• Bore well Pump,
• nduction motor.

---
