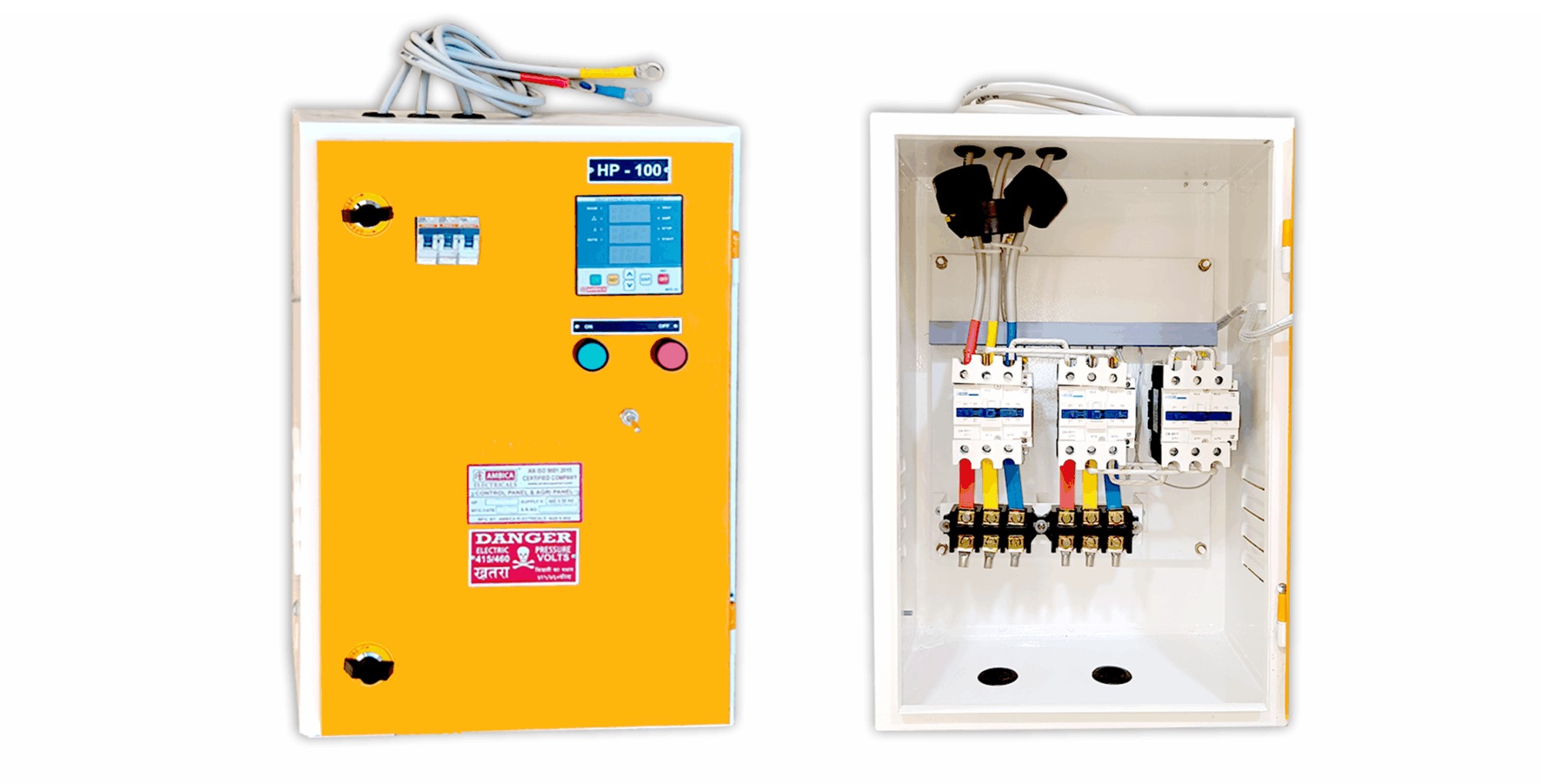

Smart Digital Without MCCB Star Delta Panel AEC-502-WSD

Order on WhatsApp

Three Phase 415 V 50Hz AC

Product description



Reference

Maximum Submersible Pump Rating at 3Ø, 415v

Relay Range Amp

MCCB

Rating (A)

Contactor Type

Std Pkg (Nos)

Mrp Per unit

HP

KW

AEC502WSD15

15 HP

11

1 a to 100 a Mpd-A2

NO

Ae2-3210-3210-3210

1

16949

AEC502WSD30

30 HP

22

NO

Ae2-4011-4011-4011

1

22758

AEC502WSD40

40 HP

30



1 a to 200 a Mpd-A2

NO

Ae2-5011-5011-5011

1

24213

AEC502WSD60

60 HP

45

NO

Ae2-8011-8011-6511

1

27493

AEC502WSD80

80 HP

60

NO

Ae2-9511-9511-8011

1

29302

AEC502WSD100

100 HP

75

NO

Ae2-9511-9511-9511

1

29584

AEC502WSD150

150 HP

112

NO

Ae2-115-115-9511

1

40833

Features

  • Voltage: Three Phase 280 V to 415 V AC 50 Hz.
  • Ae2 type Heavy duty contactor(rated up to 150 hp).
  • Heavy MCCB & Copper Busbar power connection.
  • R,Y,B Ampere Meter and R, Y, B Volt Meter.
  • High Voltage Protection.
  • Low Voltage Protection.
  • Short Circuit Protection.
  • Overload Protection.
  • AC Contactor operated Fast Switching.
  • Inbuilt Current Unbalance Protection.
  • Inbuilt Phase Unbalance Protection.
  • Phase Failure Protection.
  • Reverse Phase Protection.
  • Low Power Consumption & High Load Capacity
  • Adjustable overload from 1 to 200 A.
  • Built-In Adjustable Dry-Run Protection.
  • Adjustable Voltage Range Soft Start/Stop Buttons.
  • One Time Relay Bypass Feature.
  • Adjustable Auto Switch Timer.
  • Automatic/Manual Operating.
  • Noise & Vibration Free Operating.
  • Adjustable Delay Time for OL-Dry Run.
  • Adjustable Start Delay Time, ON/Off SPP Function.
  • Low Maintenance on Mechanical Equipment.
  • Long life and positive circuit interruption.
  • Simple Construction and Wiring.
  • WLC Function Available Optional.
  • Metal enclosure protects against dust, humidity, and insects.

Application

  • Submersible Pumps,
  • Bore well Pump,
  • nduction motor.
