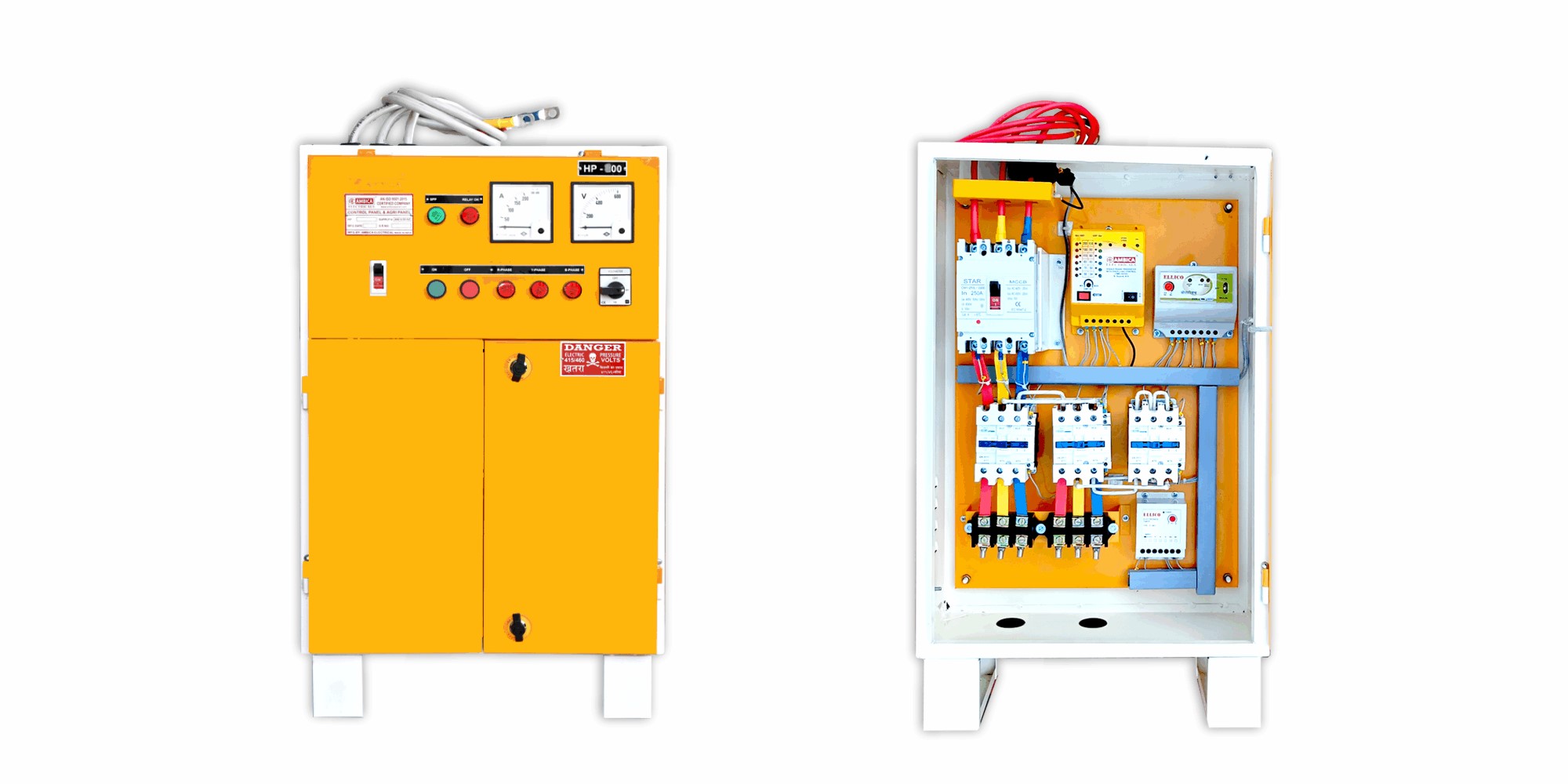

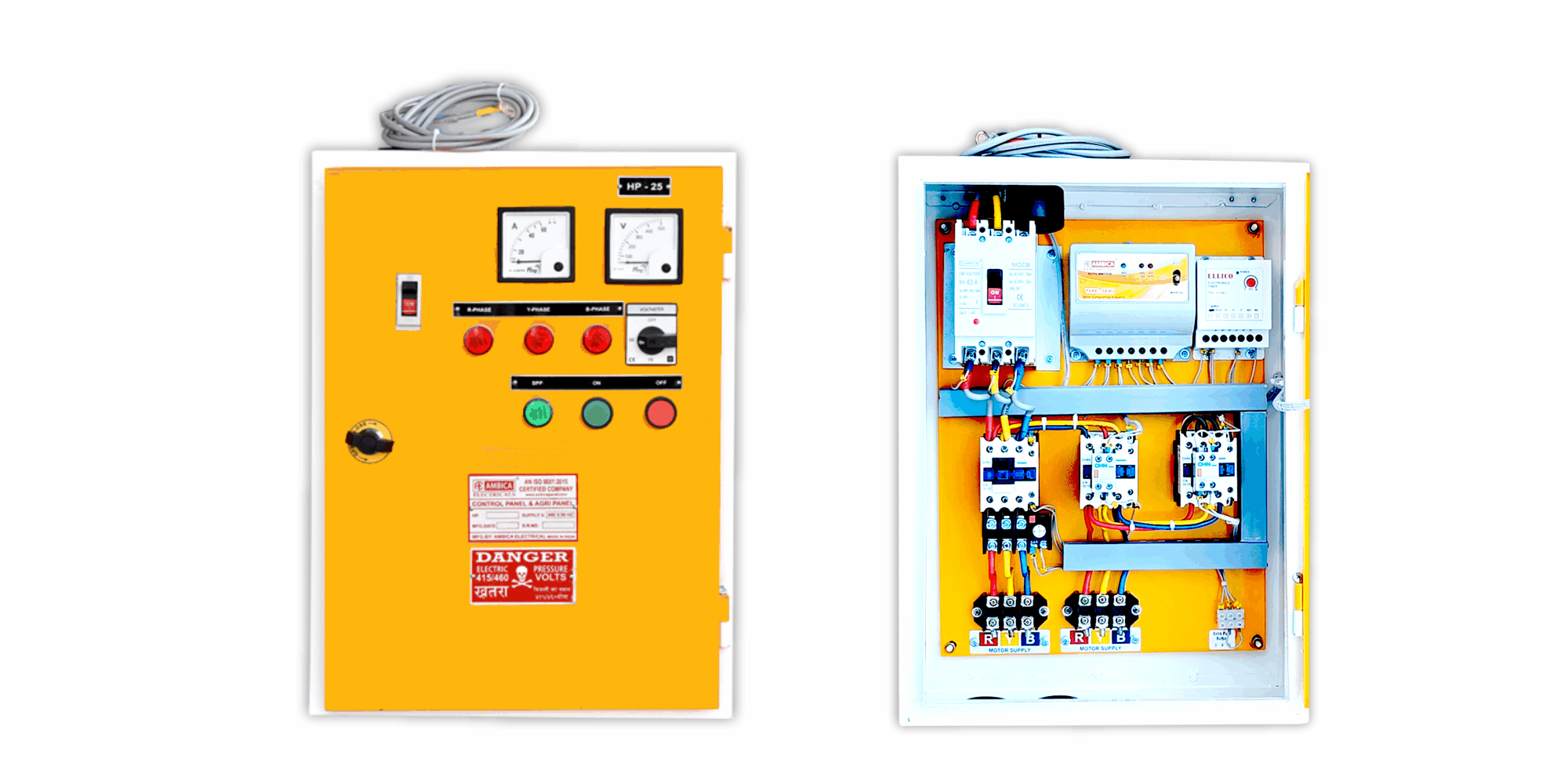

MCCB Star Delta Panel AEC-306-SD

Order on WhatsApp

Three Phase 415 V 50Hz AC

Product description



Reference

Maximum Submersible Pump Rating at 3Ø, 415v

Relay Range Amp

MCCB

Rating (A)

Contactor Type

Std Pkg (Nos)

Mrp Per unit

HP

KW

AEC306SD15

15 HP

11

12 A TO 18A

32

Ae2-3210-3210-3210

1

16233

AEC306SD30

30 HP

22

23 A TO 32A

63

Ae2-4011- 4011-4011

1

21676

AEC306SD40

40 HP

30





34 A TO 200A

125

Ae2-5011-5011-5011

1

25782

AEC306SD60

60 HP

45

125

Ae2-8011-8011-6511

1

29260

AEC306SD80

80 HP

60

250

Ae2-9511-9511-8011

1

32291

AEC306SD100

100 HP

75

250

Ae2-9511-9511-9511

1

32764

AEC306SD150

150 HP

112

250

Ae2-115-115-9511

1

44098

Features

  • → Voltage: Three Phase 280 V to 415 V AC 50Hz.
  • → Ae 2 type heavy contactor Used up to 150 hp.
  • → Heavy MCCB, Copper Busbar power connection.
  • → Fully Automatic Et-100 star delta Timer. Over load protection by Electronic relay.
  • → Noise and vibration free Operating System.
  • → Analog volt & amp meter. High-low & Unbalance voltage protection.
  • → Auto start facility, With SPP Mode.
  • → Phase failure and reverse phasing protection.
  • → Volt select switch, ON-OFF push button & indicator lamp.
  • → Sheet metal enclosures provide protection against dust, humidity, and insects.

Application

  • Submersible Pumps,
  • Bore well Pump, induction motor.
