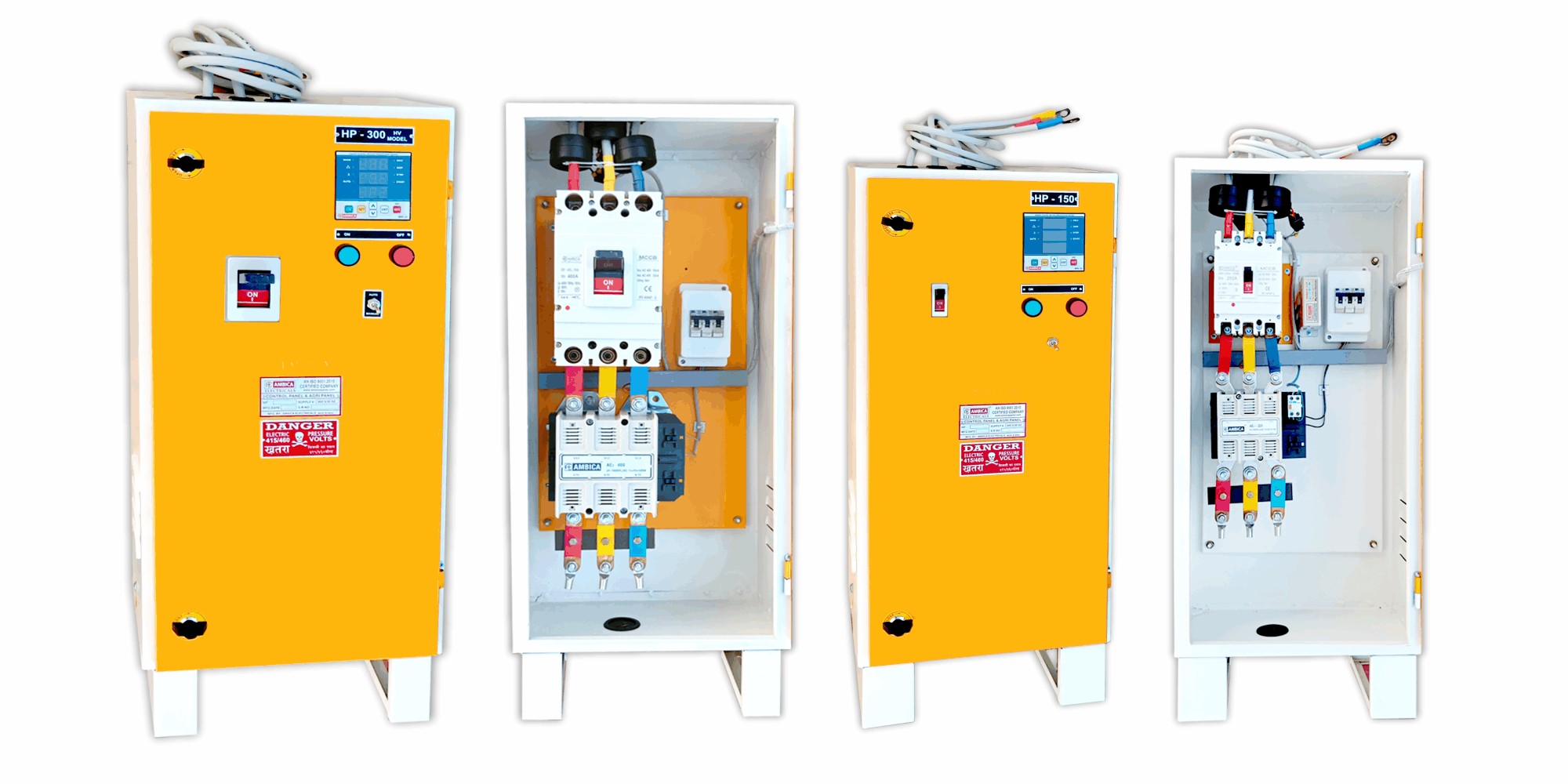

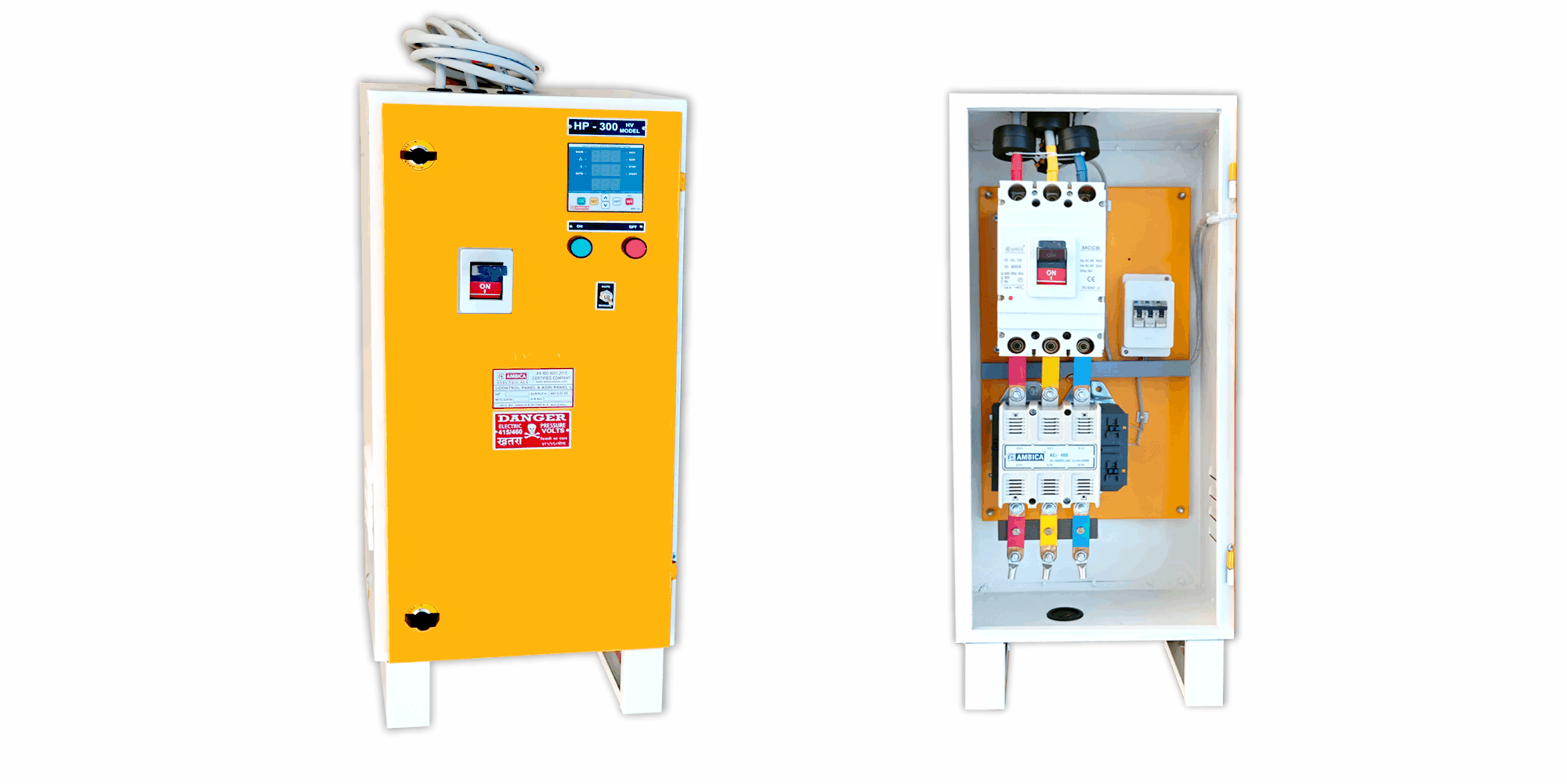

Smart Digital Mccb DOL Panel AEC-203-DOL

Product description

Reference	Maximum Submersible Pump Rating at 3Ø, 415 v		Relay Range Amp	MCCB Rating (A)	Contactor Type	Std Pkg (Nos)	Mrp Per unit
Reference	HP	KW	Relay Range Amp	MCCB Rating (A)	Contactor Type	Std Pkg (Nos)	Mrp Per unit
AEC203DOL20	20 HP	15	1 a to 300 a Mpd-A2	63	Ae2-4011	1	17211
AEC203DOL30	30 HP	22		63	Ae2-6511	1	18282
AEC203DOL40	40 HP	30		125	Ae2-9511	1	23391
AEC203DOL60	60 HP	45		125	Ae2-115	1	27285
AEC203DOL80	80 HP	60		160	Ae2-150	1	29464
AEC203DOL100	100 HP	75		160	Ae2-185	1	31431
AEC203DOL150	150 HP	112		250	Ae2-225	1	34298
AEC203DOL200	200 HP	150		250	Ae2-265	1	38949
AEC203DOL250	250 HP	187	1 a to 300 a Mpd-A2	250	Ae2-330	1	43773
AEC203DOL300	300 HP	225		400	Ae2-400	1	47262
AEC203DOL400	400 HP	300		400	Fk-500	1	51355

Features

Voltage: Three Phase 280 V to 415 V AC 50 Hz.
Ae2 type Heavy duty contactor(rated up to 400 hp).
Heavy MCCB, Copper Busbar power connection.
R,Y,B Ampere Meter and R, Y, B Volt Meter.
High Voltage Protection.
Low Voltage Protection.
Short Circuit Protection.
Overload Protection.
AC Contactor operated Fast Switching.
Inbuilt Current Unbalance Protection.
Inbuilt Phase Unbalance Protection.
Phase Failure Protection.
Reverse Phase Protection.
Low Power Consumption & High Load Capacity
Adjustable overload from 1 to 300 Α.
Noise & Vibration Free Operation
Built-In Adjustable Dry-Run Protection.
Adjustable Voltage Range Soft Start/Stop Buttons.
One Time Relay Bypass Feature.
Adjustable Auto Switch Timer.
Automatic/Manual Operation.
Adjustable Delay Time for OL-Dry Run.
Adjustable Start Delay Time Optional ON/Off SPP Function.
Low Maintenance on Mechanical Equipment.
DMC Terminal Block for Easy Wiring.
Long life and positive circuit interruption.
Simple Construction and Wiring.
WLC Function Available Optional.
Metal enclosure protects against dust, humidity, and insects.
